SPECIFICATION MANUAL YAMAHA MIO
| Dimension&Weight | |
|---|---|
| Overall length x width x height | 1,820mm x 675mm x 1,050mmSeat |
| height | 745mm |
| Wheelbase | 1,240mm |
| Minimum ground clearance | 125mm |
| Dry(without oil and fuel) / Wet (with oil and full fuel tank) | 92kg / 95kg |
| Engine Performance | |
| Engine type | Forced air cooled 4-stroke, SOHC Cylinder |
| arrangement | Single cylinder |
| Displacement | 113cm3 |
| Bore & stroke | 50.0mm x 57.9mm |
| Compression ratio | 8.8 : 1 |
| Maximum horse power | 5.98kW(8000r/min) |
| Maximum torque | 7.53 N.m(6500r/min) |
| Starting system type | Electric starter and kickstarter |
| Lubrication system | Wet sump |
| Engine oil capacity | 0.9 liters |
| Fuel tank capacity | 3.7 liters |
| Fuel | |
| Carburetor type | NCV24 |
| Electrical | |
| Ignition system type | DC-C.D.I. |
| Transmission | |
| Primary / Secondary reduction ratio | 3.133 / 3.231 |
| Clutch type | Dry, centrifugal automatic |
| Gear ratio | |
|---|---|
| Transmission type | V-belt automatic |
| Gear ratios | 2.399 - 0.829 |
| Chassis | |
| Frame type | Steel tube underbone |
| Caster angle / Trail | 26.5°/ 100mm |
| Tire size (Front / Rear) | 70/90-14M/C 34P / 80/90-14M/C 40P |
| Brake | |
| Brake type (Front / Rear) | Single disc / Drum |
| Suspension | |
| Suspension type (Front / Rear) | Telescopic fork / Unit swing |
| Bulbs(voltage/wattagex quantity) | |

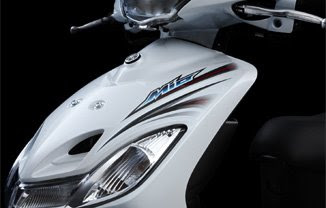

| Headlight | 12V, 32/32W, x 1 |
